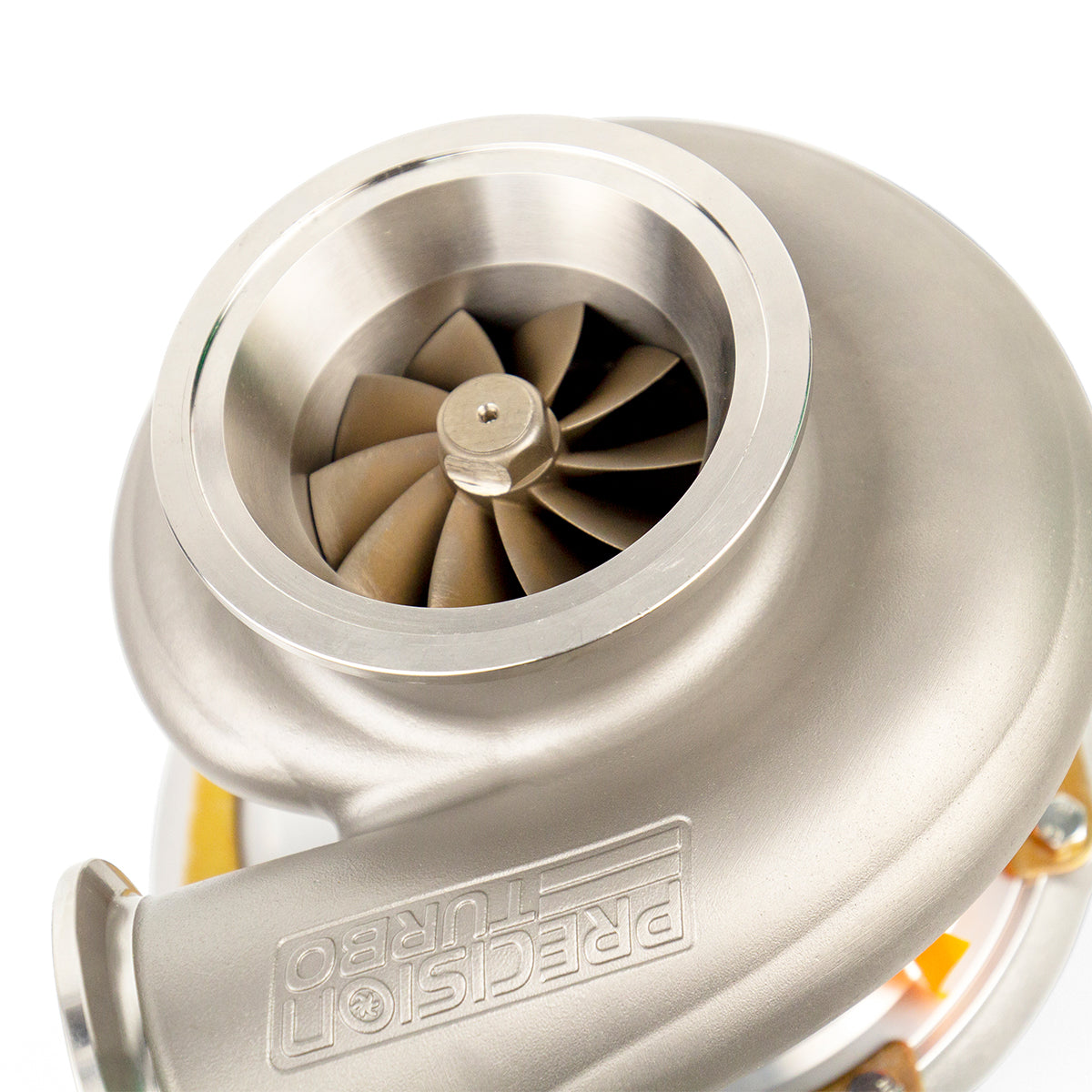

NEXT GEN PT7270 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R

The all-new 7270 H Cover turbocharger features a NEXT GEN, 72mm CEA compressor wheel mated to our 70mm high flow turbine wheel. This unit is based on the H cover ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, The Next Gen 7270 turbo charger is rated at 1200HP.

• NEXT GENERATION RACE TECHNOLOGY
• powerful 72mm H cover turbocharger in the market.
• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow.
• All new compressor cover design with flow enhancements and advanced machining techniques providing 15% more airflow and greater efficiency at higher pressure ratios.
• Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity.
• No price increase over the Gen 2 version.
• Proven to provide a 15% improvement over the previous generation. Rated to support 1200 flywheel horsepower.

Specifications:

Compressor Wheel Inducer: 72mm

Compressor Wheel Exducer: 99/101mm

Turbine wheel inducer: 78.7m

Turbine wheel exducer: 70.2mm
